Description

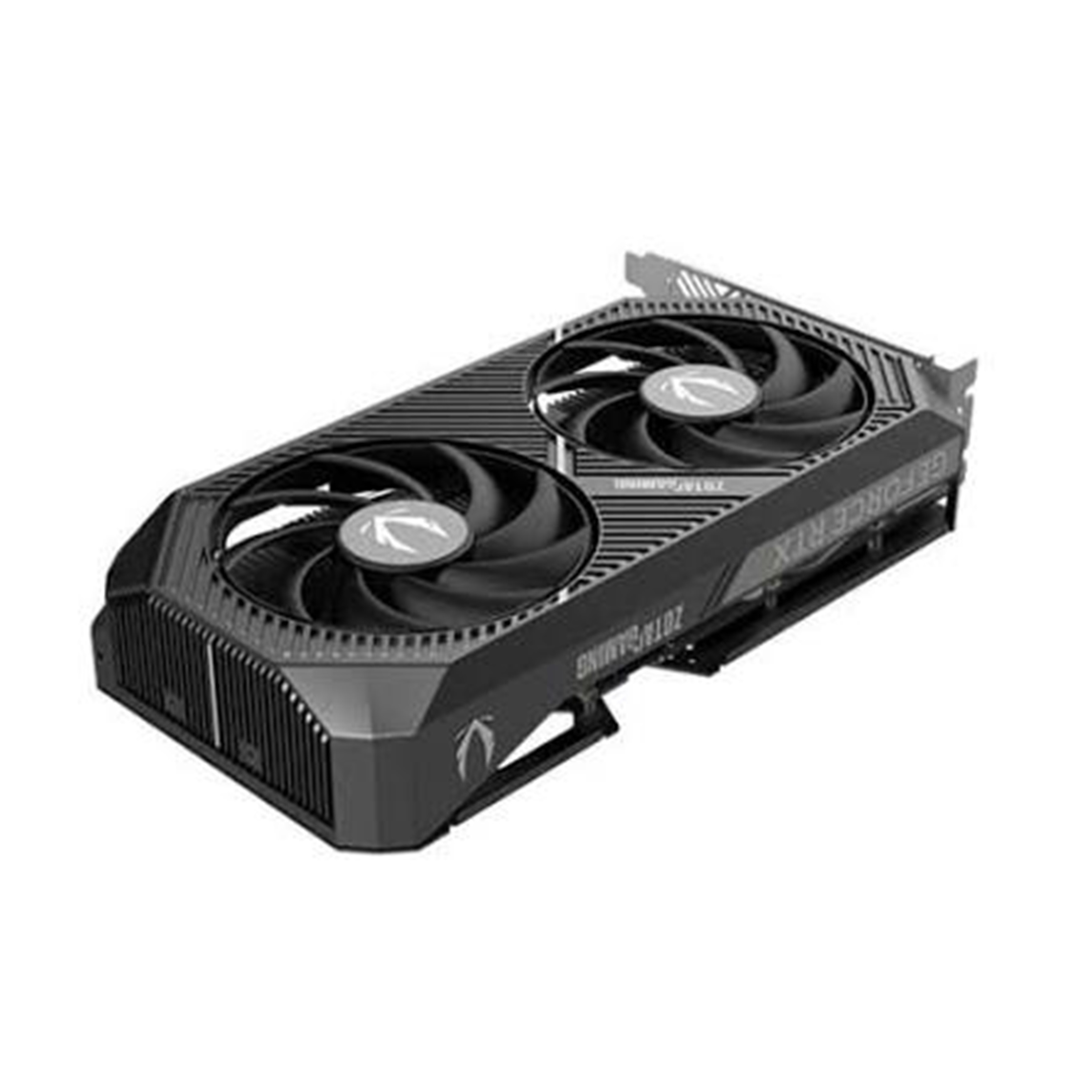

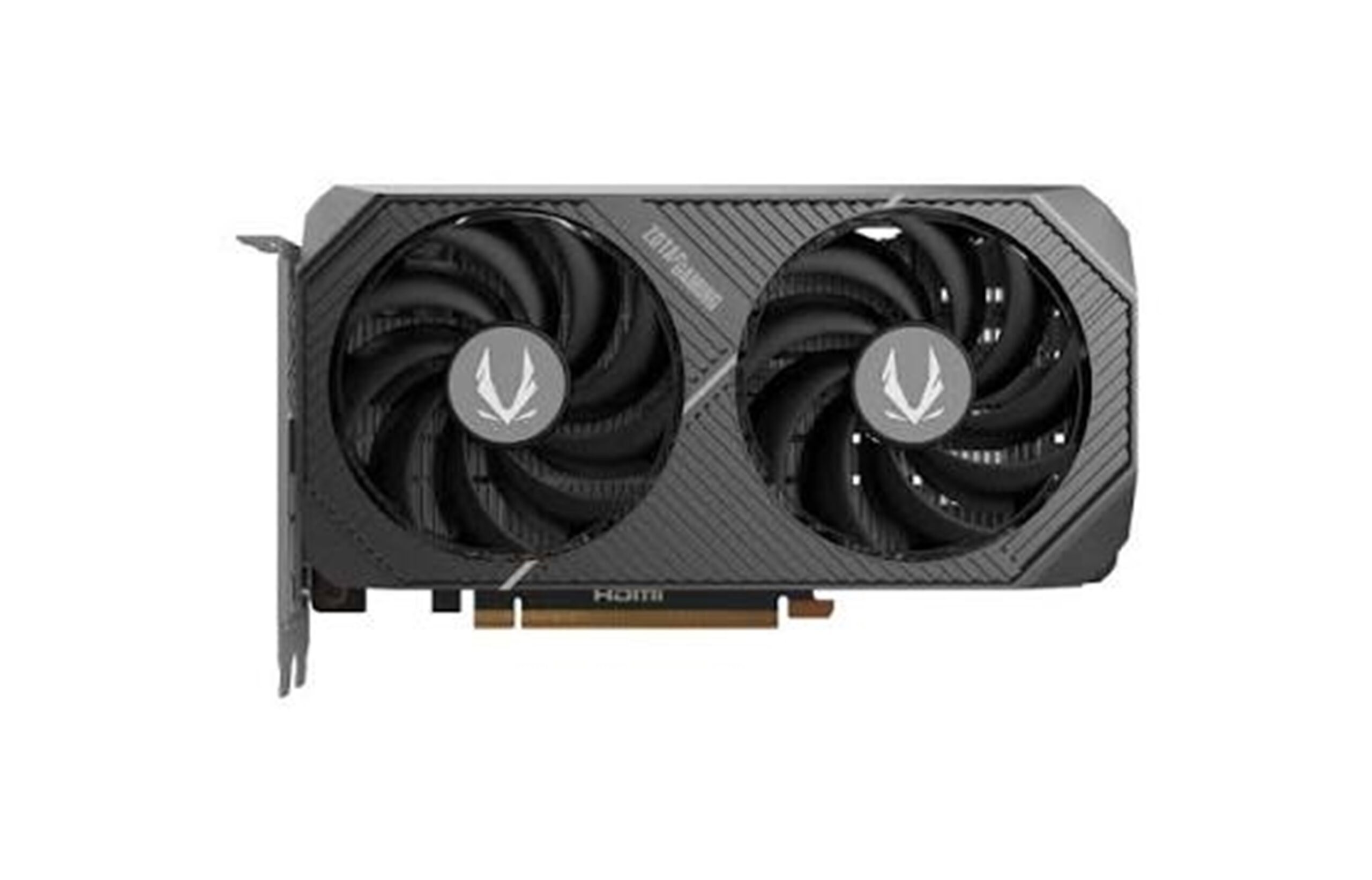

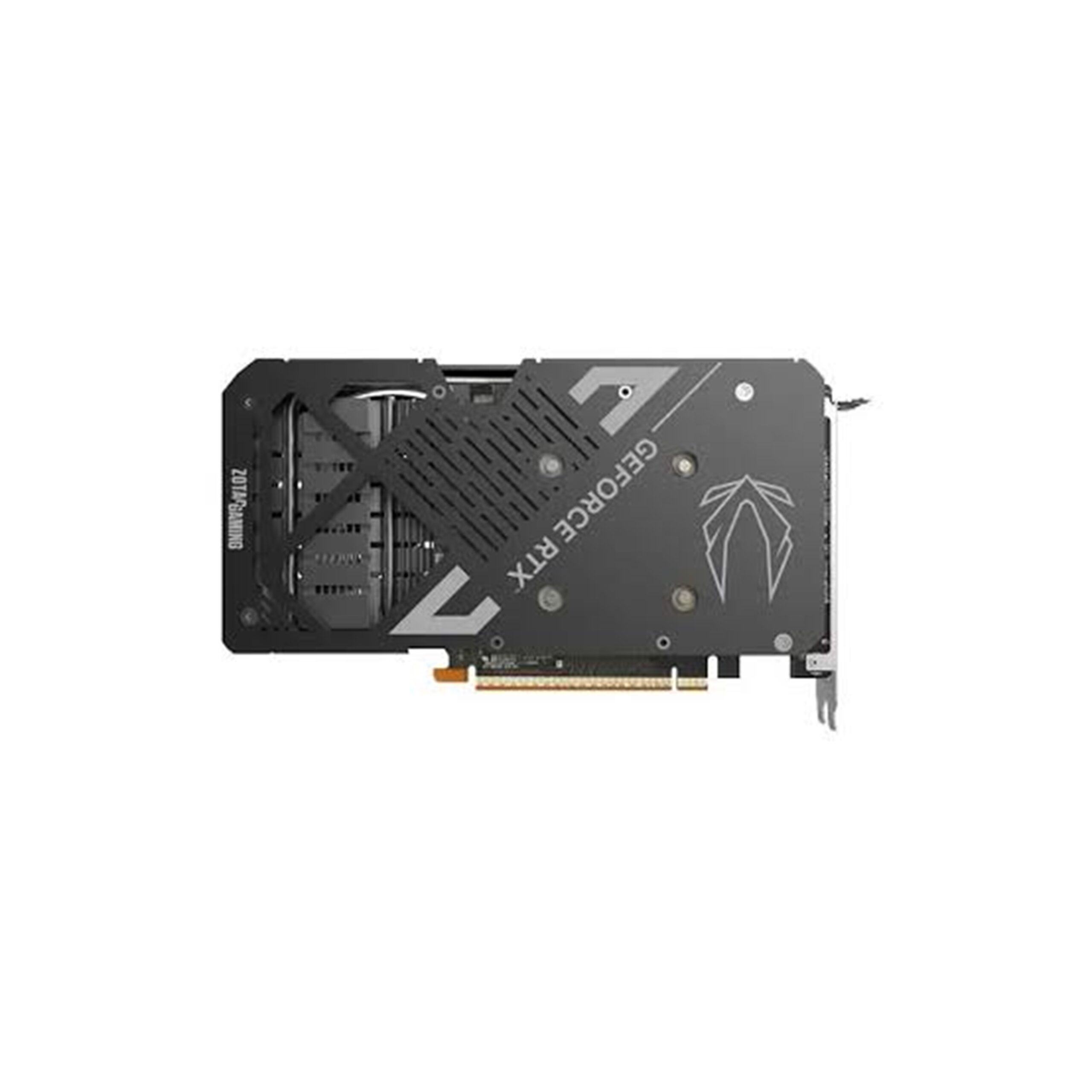

The ZOTAC GAMING GeForce RTX 5060 Twin Edge (ZT-B50600E-10M) is a compact, dual-fan graphics card designed for gamers who want excellent 1080p and capable 1440p gaming performance. Powered by NVIDIA’s latest Blackwell architecture, it supports advanced AI-powered graphics technologies such as DLSS 4 and real-time ray tracing.
Key Features
- NVIDIA GeForce RTX 5060 GPU
- NVIDIA Blackwell Architecture
- 8GB GDDR7 high-speed graphics memory
- 3840 CUDA Cores
- DLSS 4 with AI Frame Generation
- 4th Generation Ray Tracing Cores
- 5th Generation Tensor Cores
- Dual 90mm BladeLink cooling fans
- Metal Backplate
- Compact SFF-Ready (Small Form Factor) design
- PCI Express 5.0 x8 interface
- ZOTAC FireStorm Utility for monitoring and overclocking
Specifications
| Feature | Details |
|---|---|
| GPU | NVIDIA GeForce RTX 5060 |
| CUDA Cores | 3840 |
| Boost Clock | 2497 MHz |
| Memory | 8GB GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 128-bit |
| Interface | PCIe 5.0 x8 |
| Power Consumption | 145W |
| Recommended PSU | 550W |
| Power Connector | 1 × 8-pin PCIe |
| Display Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| Maximum Displays | 4 |
| Card Size | 220.5 × 120.25 × 41.6 mm |
| Slot Size | Dual-slot |
| DirectX | DirectX 12 Ultimate |
| OpenGL | 4.6 |
| Operating System | Windows 10/11 64-bit |
Ideal For
- High-refresh-rate 1080p Ultra gaming
- Smooth 1440p gaming in many modern titles
- Content creation and streaming
- AI-assisted applications
- Compact Mini-ITX and Small Form Factor PC builds
