Description
Key Specifications
| Spec | Details |
|---|---|

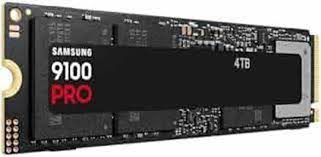

| Model | MZ-VAP4T0BW (also sometimes labeled MZ-VAP4T0B/AM) |
| Capacity | 4 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 5.0 ×4, NVME 2.0 |
| NAND / Controller | Samsung V-NAND (TLC), Samsung in-house controller |
| Cache | 4 GB LPDDR4X for the 4 TB model |
Performance
| Metric | Specified / Up To |
|---|---|
| Sequential Read | Up to 14,800 MB/s |
| Sequential Write | Up to 13,400 MB/s |
| Random Read (4 KB, QD32) | Up to 2,200,000 IOPS |
| Random Write (4 KB, QD32) | Up to 2,600,000 IOPS |
Power / Efficiency / Other Features
| Feature | Detail |
|---|---|
| Power (Active) | 9.0 W during read, 8.2 W during write for 4 TB model |
| Power (Idle / Sleep modes) | Very low, a few milliwatts: Idle 6.5 MW, device sleep 5.7 MW |
| Thermal / Efficiency Enhancements | Improved power efficiency (49% better vs. 990 PRO), advanced thermal control. |
| MTBF / Reliability | MTBF 1.5 million hours . |
| Endurance / TBW | 2,400 Terabytes Written for the 4 TB model |
| Warranty | 5 years limited or until TBW is exhausted |
Use-Cases / Considerations
-
This is a very high performance SSD aimed at pro/gaming workloads, video editing, AI tasks, etc. If your system supports PCIe 5.0 ×4 this SSD can really stretch its legs.
-
It’s backward compatible with PCIe 4.0 / 3.0, but speeds will obviously be lower.
-
Thermal dissipation and cooling are important: at these speeds, with sustained large writes, heat can build up and throttle performance. Using good airflow or a heatsink is beneficial.
