Description
GALAX GeForce RTX 5060 Ti 1 16 GB (GDDR7):
🔹Key Specification
The GALAX RTX 5060 Ti 16GB (1-Click OC) is the GALAX-branded variant of NVIDIA’s RTX 5060 Ti GPU—part of the latest RTX 50 series built on the Blackwell architecture.
From GALAX’s official spec sheet:
-
CUDA Cores: 4,608
-
Boost Clock: 2.587 GHz (with one-click OC up to 2.602 GHz)
-
Memory: 16 GB GDDR7
-
Memory Interface: 128-bit, 28 Gbps, 448 GB/s bandwidth
-
Interface: PCIe 5.0
-
Cooling: Dual 92 mm WINGS 3.0 fans with heat pipes and fan-stop at idle
-
Display Outputs: 3× DisplayPort 2.1b and 1× HDMI 2.1b
-
Other Features: DLSS 4, RT Cores, Tensor Cores, DirectX 12 Ultimate, G-SYNC, VR-Ready, NVIDIA Studio/Game Ready drivers.
Summary Table
| Feature | Details |
|---|---|
| GPU Model | GALAX RTX 5060 Ti 1-Click OC 16 GB |
| GPU Architecture | NVIDIA Blackwell (RTX 50 Series) |
| Release Date | April 16, 2025 (16 GB variant) |
| Capacity | 16 GB |
| Key Specs | 4,608 CUDA cores, 16GB GDDR7, PCIe 5.0 |
| Brand | GALAX |
| Warranty | 3 Year |
🔹GPU Engine & Performance
-
CUDA Cores: 4,608
-
Boost Clock: 2,587 MHz (stock)
-
1-Click OC Boost Clock: 2,602 MHz (via Xtreme Tuner Plus)
🔹Memory Subsystem
-
Memory Configuration: 16 GB GDDR7
-
Memory Bus Width: 128-bit
-
Memory Speed: 28 Gbps
- Memory Bandwidth: 448 GB/s
🔹Architecture & Features
-
GPU Architecture: NVIDIA Blackwell (RTX 50 Series)
-
AI & Graphics Enhancements: DLSS 4 (with Multi-Frame Generation), 5th-gen Tensor Cores, 4th-gen RT Cores, NVIDIA Reflex 2, DirectX 12 Ultimate, NVIDIA Studio & Game-Ready Drivers, G-SYNC support, VR Ready .
-
PCI Express Interface: PCIe 5.0

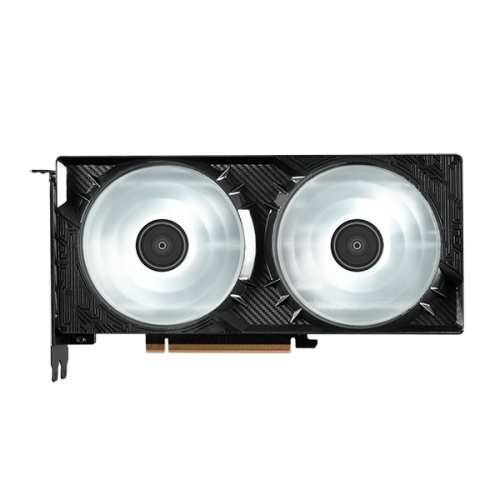

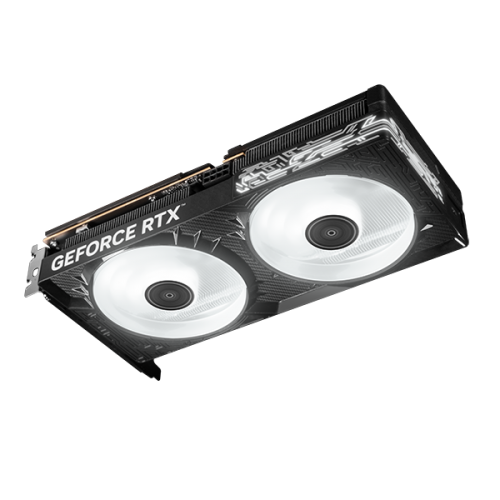

🔹Cooling & Design
-
Cooling Setup: Dual 92 mm WINGS 3.0 fans with fan-stop at idle, complemented by 3 × 6 mm heat pipes .
-
Form Factor / Dimensions:
-
With bracket: 247 × 131 × 40.6 mm
-
Without bracket: 235 × 115.5 × 39.6 mm
🔹Display & Connectivity
-
Display Outputs:
-
3 × DisplayPort 2.1b
-
1 × HDMI 2.1b
