GALAX RTX 3060 DDR6 -12 GB

Description

GALAX (Galax) RTX 3060 12 GB GDDR6 (1-Click OC) graphics card, based on the information:

🔹Key Specifications

According to GALAX’s official product page:

• CUDA Cores: 3,584

• Boost Clock: 1,777 MHz (factory overclock via 1-Click OC raises it to 1,792 MHz)

• Memory: 12 GB GDDR6, 192-bit bus, 15 Gbps (≈360 GB/s)

• Cooling: Dual 90 mm fans with idle fan-stop

• Outputs: 3× DisplayPort 1.4a, 1× HDMI 2.1

• Interface: PCI-E 4.0 x16

• Power Requirement: Requires one 8-pin PCIe connector; minimum recommended PSU is 550 W

• Software Tools: Includes Xtreme Tuner (for easy overclocking via 1-Click OC)



Additional vendor-specific specs generally align:

• Prime ABGB listing highlights the same clock speeds, cooling layout, and overall design .

• Tech Power Up database lists variations like the “General OC” and “Gamer Max OC,” showing slight clock differences (e.g., 1,807 MHz boost clock), but still 12 GB GDDR6, same core specs .

🔹Overview & Features

• GPU & Architecture: Based on NVIDIA’s Ampere architecture, featuring 3,584 CUDA cores, 2nd-gen Ray Tracing cores, and 3rd-gen Tensor cores. Supports DirectX Ultimate, DLSS, Reflex, Broadcast, and more .

• Boost Clocks:

• Base Boost: 1,777 MHz

• With 1-Click OC (using Xtreme Tuner): 1,792 MHz

🔹Memory & Performance

• Memory Configuration: 12 GB GDDR6, 192-bit interface.

• Memory Speed: 15 Gbps (≈360 GB/s bandwidth)

🔹Cooling, Power & Dimensions

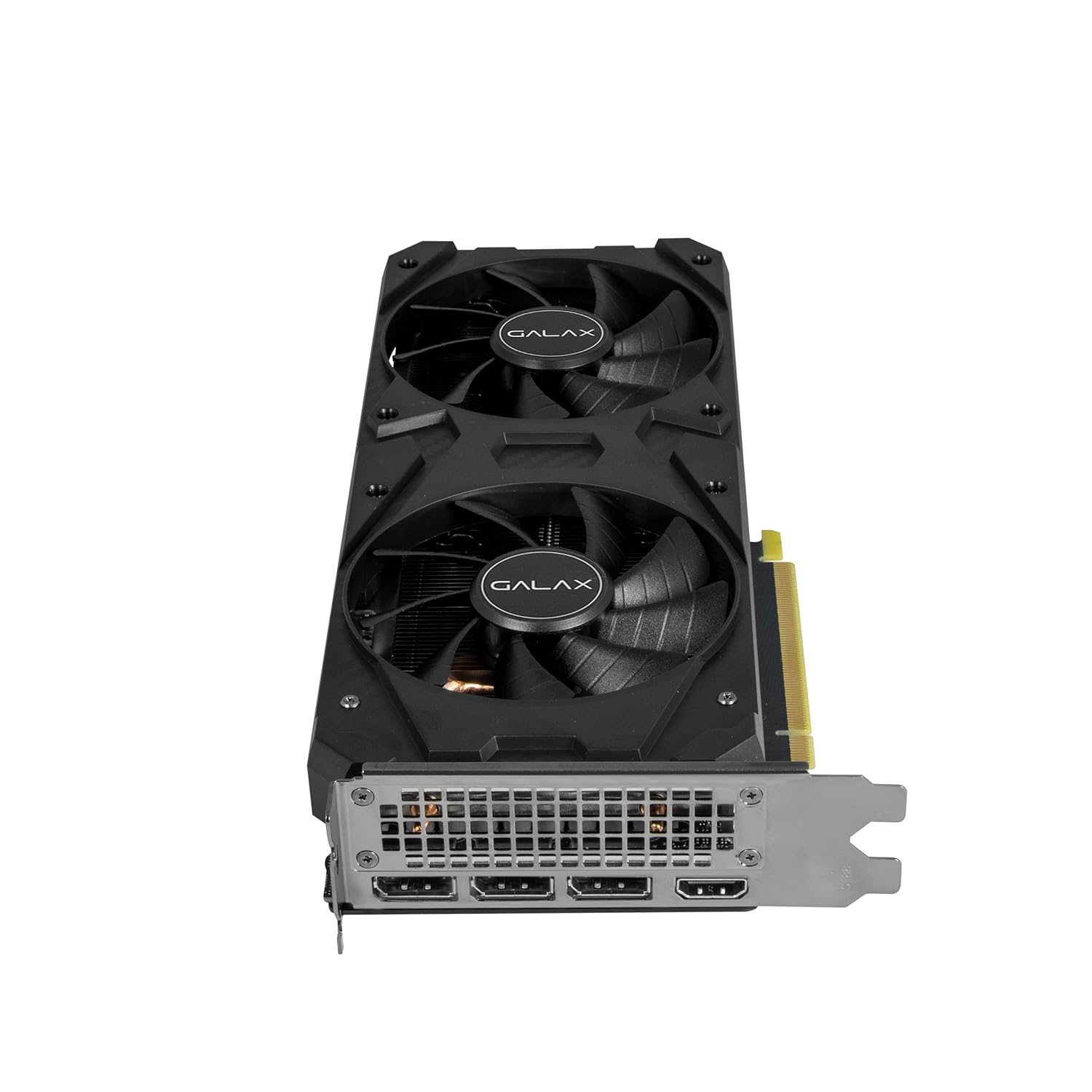

• Cooling: Dual fans (90 mm each); automatic idle fan stop for silent downtime .

• Power: Requires a single 8-pin PCIe connector; minimum recommended PSU is 550 W.

🔹Display & Support

• Outputs: 3× DisplayPort 1.4a, 1× HDMI 2.1; HDCP 2.3; VR Ready .

• Interface: PCIe 4.0 x16

• OS Compatibility: Windows 10 (64-bit) and Linux (64-bit)
